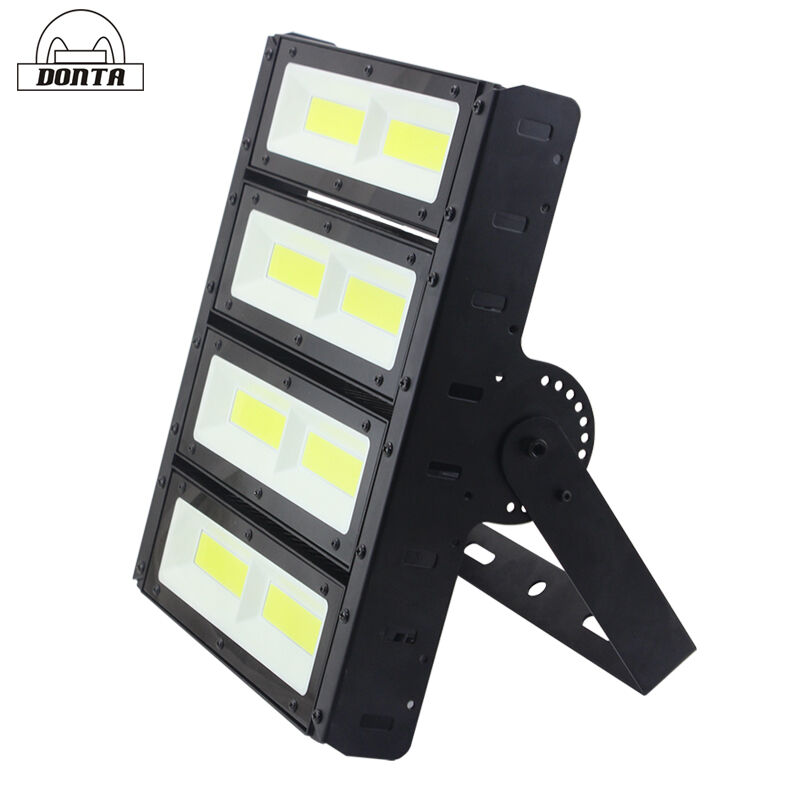

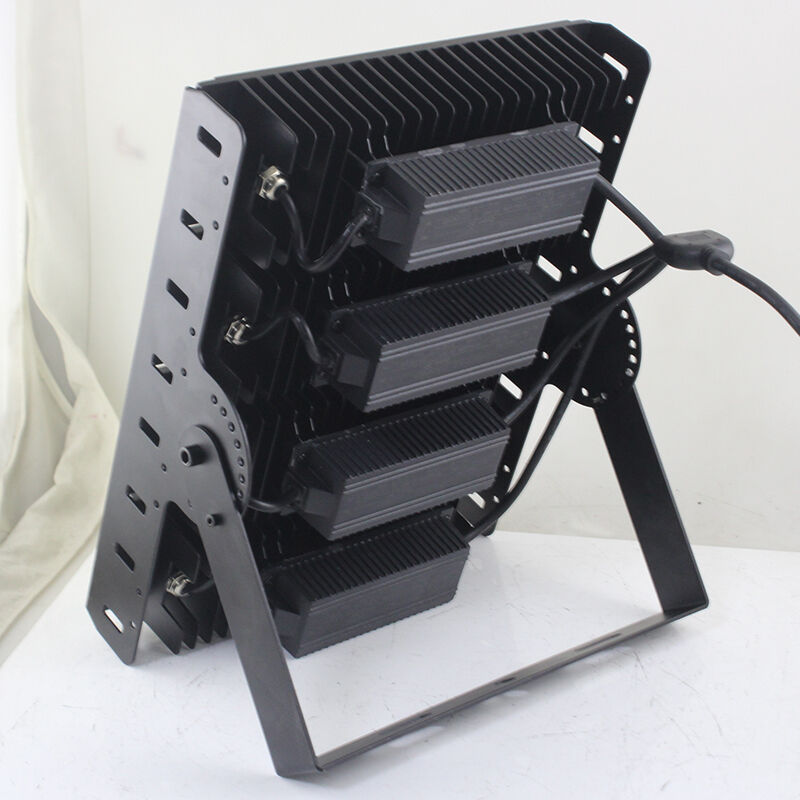

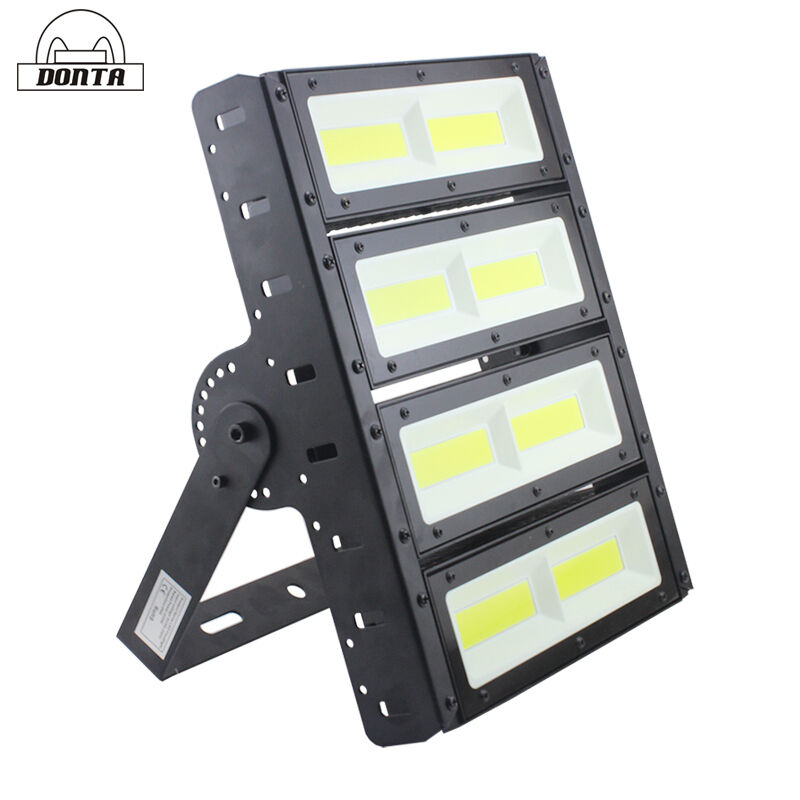

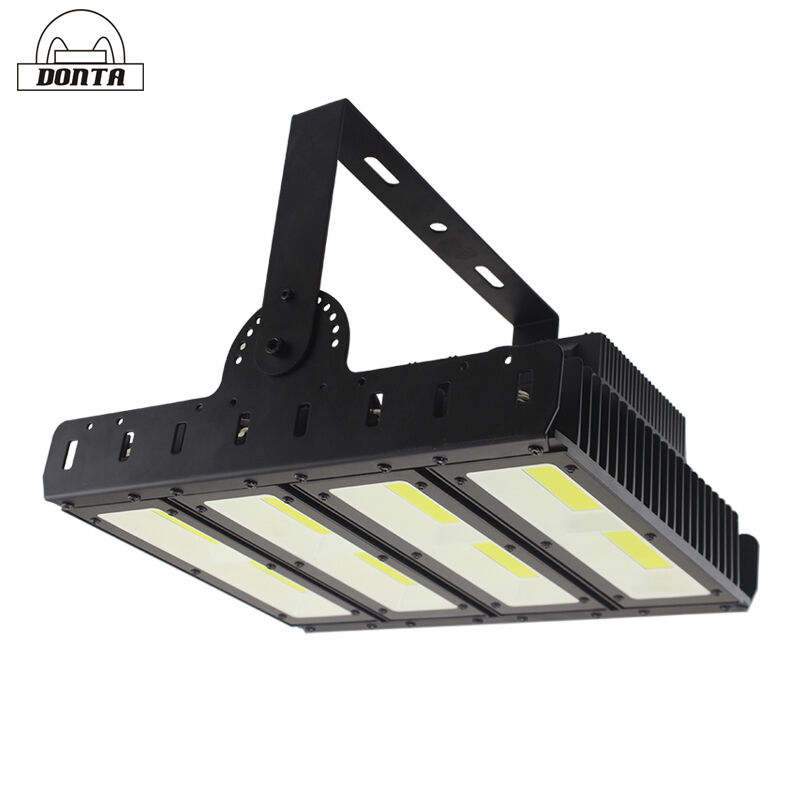

High power high lumen 150lm/W IP66 200w cob led flood light module 6500K white light exterior lighting


Light Source:LED                                       Item Type:Flood Lights                               LED Light Source:Epistar

Input Voltage(V):AC85-265V                      Lamp Power(W):150                                   Lamp Luminous Flux(lm):22500

Lamp Luminous Efficiency(lm/w):150         CRI (Ra>):80                                              Color Temperature(CCT):Cool White

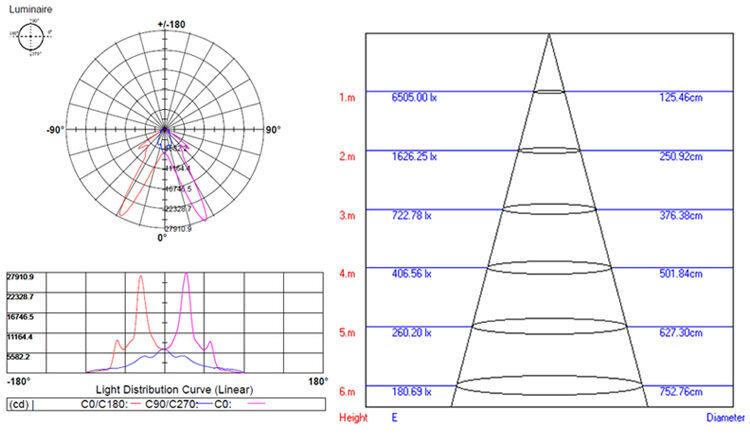

Beam Angle(°):120                                    Working Lifetime(Hour):50000                    DegreeWorking Temperature(℃):-20 - 50

Lamp Body Material:Aluminum                   IP Rating:IP66                                             Certification:CE, EMC, RoHS,3C

Brand Name:DONTA                                  Model Number:M23-200W                           Product Name:200w cob led flood light

LED Chip:COB Chips                                Material:Aluminum+Toughened Glass          Power:50W/100W/150W/200W/250W/300W

LED Driver:Waterproof LED Power           Type:Waterproof IP66 Led Floodlight           Item:LED Outdoor Flood Light 200W

Color:Pure White                                       Warranty:3years

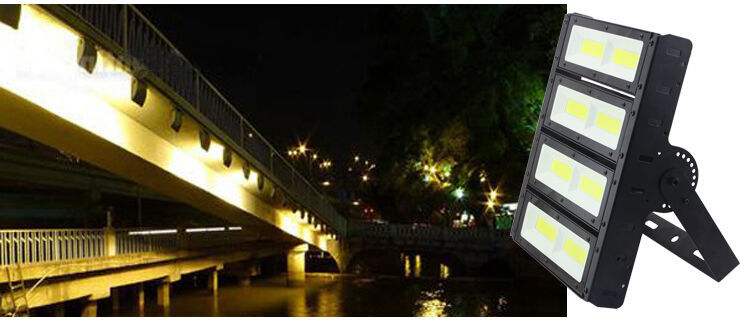

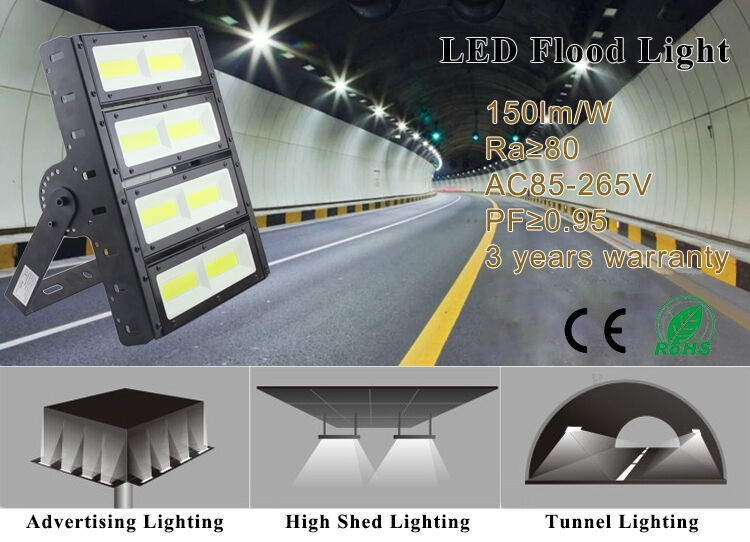

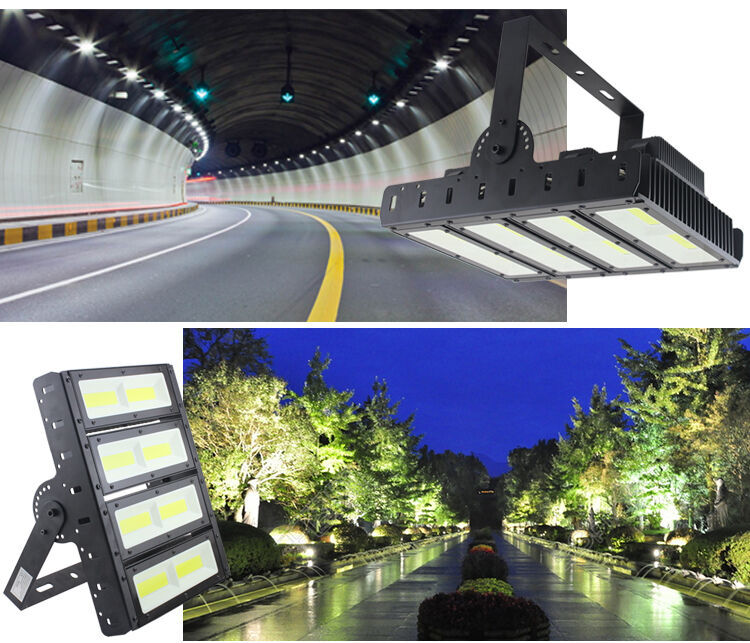

Application:Tunnel, roadway, Gas Station, Factory, Warehouse,Workshop,Square, Garden,Parking Lot,advertisingGym Football Field lighting.

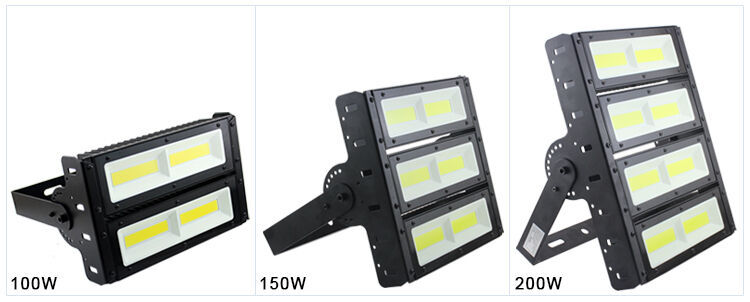

Model No.M23-50WM23-100WM23-150WM23-200WM23-250W
Power50W100W150W200W250W
LED ChipsCOB ChipsCOB ChipsCOB ChipsCOB ChipsCOB Chips
Luminous flux7500lm15000lm22500lm30000lm37500lm
Product size(CM)31*10*1331*18*1331*28*1331*37*1331*45*13
Packaging size(CM)32*21.5*2234*28*16.534*32*16.539*34.5*16.549*32*16.5




high power high lumen 150lm/W IP66 200w cob led flood light module 6500K white light exterior lighting


Matters Needing Attention

1. The light’s waterproof grade is IP65, able to withstand rains, but it can’t work under water.


 2. Cut off power supply before and in installation process. If the product is damaged due to mal-operation,

it shall not be guaranteed. Please have it mounted by a professional.


3. The light’s operating ambient temperature is between -25℃ and 50℃. The temperature of operational site shall

not exceed 50℃, to ensure the light’s service life.


 4. Since the light power is high, when power line is arranged, it’s necessary to select a proper power line according

to actual power, and supply power in single phase.


 5. Please don’t dismount the light without authorization. Please contact professional maintenance personnel or

the manufacturer if the light isn’t lit or is faulty otherwise.
